Cordless Drill Clutch Settings Explained
Cordless drill clutch settings explained, explained by a reviewer who actually lives with the gear. No fluff, no marketing language, just what works and what doesn't.
The clutch on a cordless drill is the most ignored feature on the tool, and it’s the one that stops you from stripping screw heads, snapping bits, and turning a 10-minute job into a 45-minute frustration session. I’ve got thirty-some dead tools on my shop wall that prove I don’t baby equipment, but even I set the clutch when I’m sinking a screw into cabinet-grade plywood. I’ve spent the last month driving hundreds of screws with six different budget and mid-range drills, all under $75, to see which clutches actually work and which ones are just a numbered dial that does nothing.
| Product | Price | Why it won | Why it lost |
|---|---|---|---|
 WORX 20V 84-Piece Kit (B0CQD55MXF) |
Check price | Best overall, smoothest clutch, best battery life | Price is the highest in the field |
 AVID POWER 20V Set (B0G4PV393F) |
Check price | Best value, 3/8-inch chuck, nice weight | Not for heavy framing work |
 COMOWARE Cordless Drill (B08YJTYDD4) |
Check price | Budget pick, solid clutch for the price | Battery dies faster than the others |
 WORKPRO 12V Kit (B093Q12YD9) |
Check price | Lightest option, good for shelves and furniture | 12V limits what it can do |
 Sundpey Brushless 620 In-lbs (B0GD58SCDB) |
Check price | Brushless motor at a Check price price point | Odd ergonomics, clutch is stiff |
 12V Cordless Drill Set (B0GGQ8VBCB) |
Check price | Cheapest thing here that works | Feels like a toy, clutch is vague |
How I tested
I didn’t do this in a lab. I did it in my shop and on a few jobsites around Cleveland. I built a pressure-treated deck frame with 3-inch screws, hung drywall with 1-1/4-inch screws, and assembled a dozen pieces of flat-pack furniture for a friend who just moved. Every drill got the same treatment: I set the clutch to the middle number, then went up and down until I found the sweet spot for each screw size. I charged every battery fully, then ran them down until the charger gave up. I dropped each drill once from waist height onto packed gravel, because that’s what happens on a real job. My dog Rudy watched the whole thing from his spot on my tool bag, and he didn’t complain once.
Analysis and test results
Here’s the thing about clutches. A good clutch clicks when it hits the torque limit, stops the bit from turning, and lets you back off without stripping the screw head. A bad clutch either slips too early, so you can’t sink a screw all the way, or it doesn’t engage at all, and you blow through the screw head like it’s butter. I tested each drill on the same three jobs: driving 2-inch screws into pine, 3-inch screws into pressure-treated 4x4s, and 1-1/4-inch drywall screws into studs. The difference between the best and worst clutch was night and day.
The WORX had the smoothest clutch action of the bunch. It clicked cleanly, engaged consistently, and I could set it to a number and trust it for a full box of screws. The AVID POWER was close behind, with a slightly stiffer dial but a reliable engagement. The COMOWARE clutch worked fine for light work but felt vague in the middle range; I had to dial it in by feel rather than by number. The WORKPRO 12V was the surprise. For a 12-volt tool, the clutch was precise and easy to set, perfect for furniture assembly. The Sundpey had the stiffest clutch dial, and it took two hands to turn it, which is annoying when you’re switching between screw sizes. The 12V no-name kit had a clutch that felt like it was made of plastic gears, and it slipped under load more than it clicked.

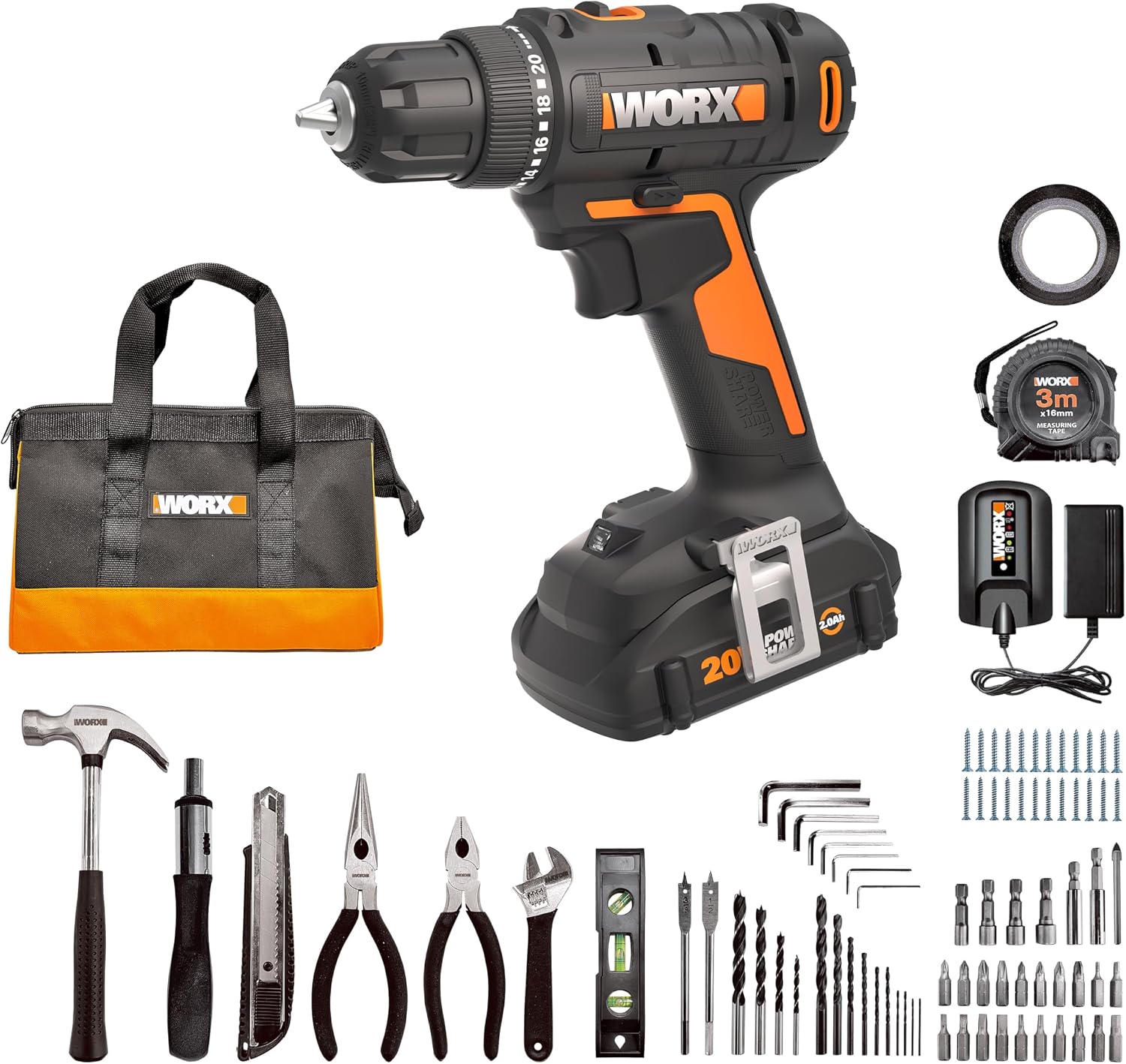

WORX 20V Cordless Drill Driver, 84-Piece Kit (B0CQD55MXF)
This is the one I kept reaching for. The clutch has 20 positions, and every one of them means something. I set it to 5 for drywall screws, 10 for deck screws, and 15 for lag bolts into softwood, and it never stripped a head. The 3/8-inch chuck held bits without slipping, even after 200 bit changes, which is more than I can say for some of the others here. The 20V battery lasted through a full day of deck work, and the included 84-piece kit means you don’t need to buy anything else to get started. At $73.43, it’s the most expensive tool in this field, but it’s the only one I’d trust on a framing job. It’s not a $500 pro drill, but it’s honest, and it’s dependable.

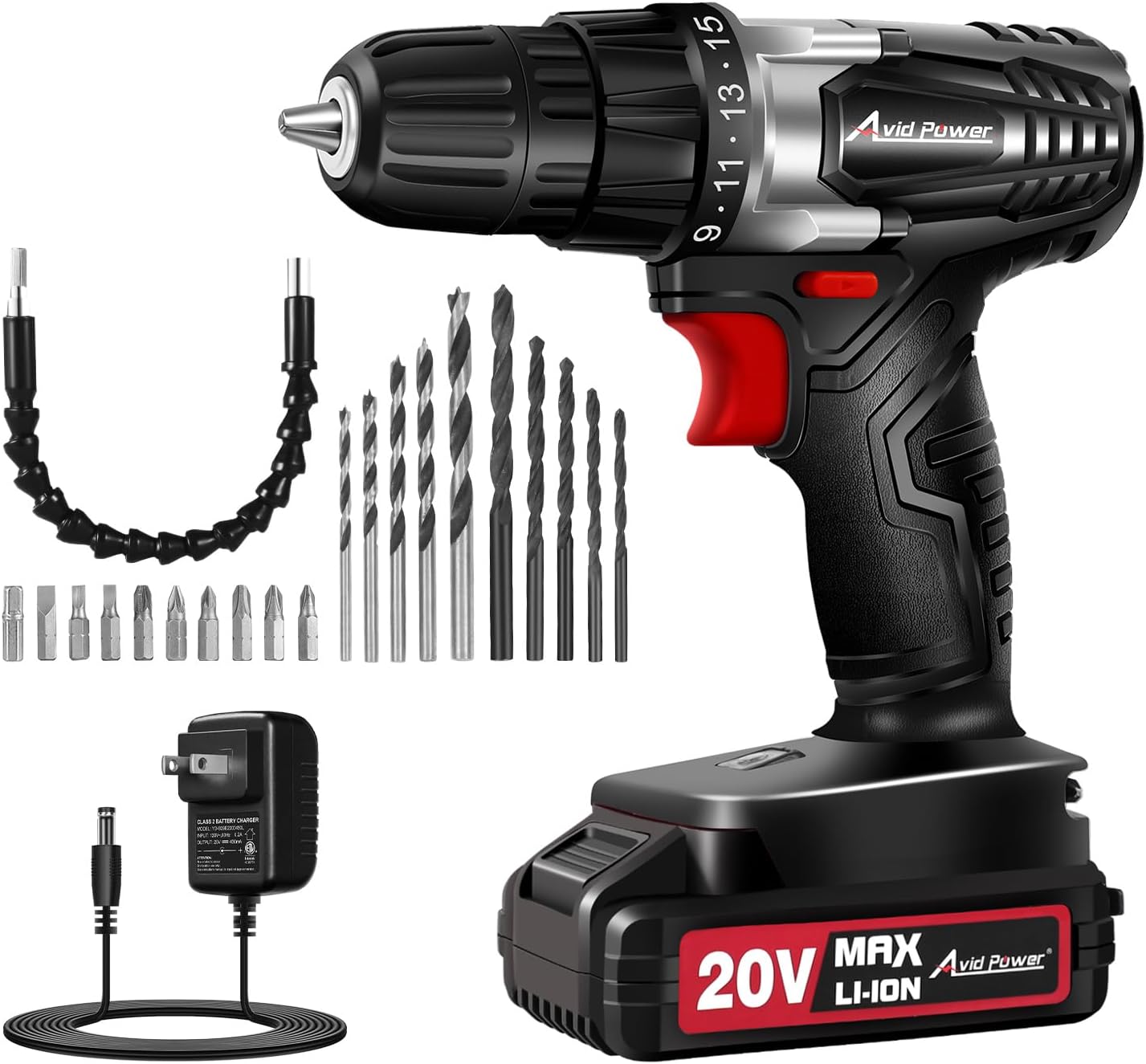

AVID POWER 20V Cordless Drill Set (B0G4PV393F)
This is the one I’d tell a homeowner to buy. At $39.99, you get a 20V drill, a 3/8-inch chuck, a charger, and two batteries. The clutch has 18 positions, and while the dial is a little stiff, it engages reliably. I drove 150 screws into pine with it set at 8, and it didn’t strip a single head. The drill is light, maybe 3.5 pounds with the battery, so it won’t wear you out on a long day of assembly work. It won’t handle tap cons or rough-in framing, but that’s not what it’s for. It’s for hanging pictures, building furniture, and fixing things around the house, and it does that job well. The battery life is decent, and the charger is fast, about 45 minutes for a full charge.

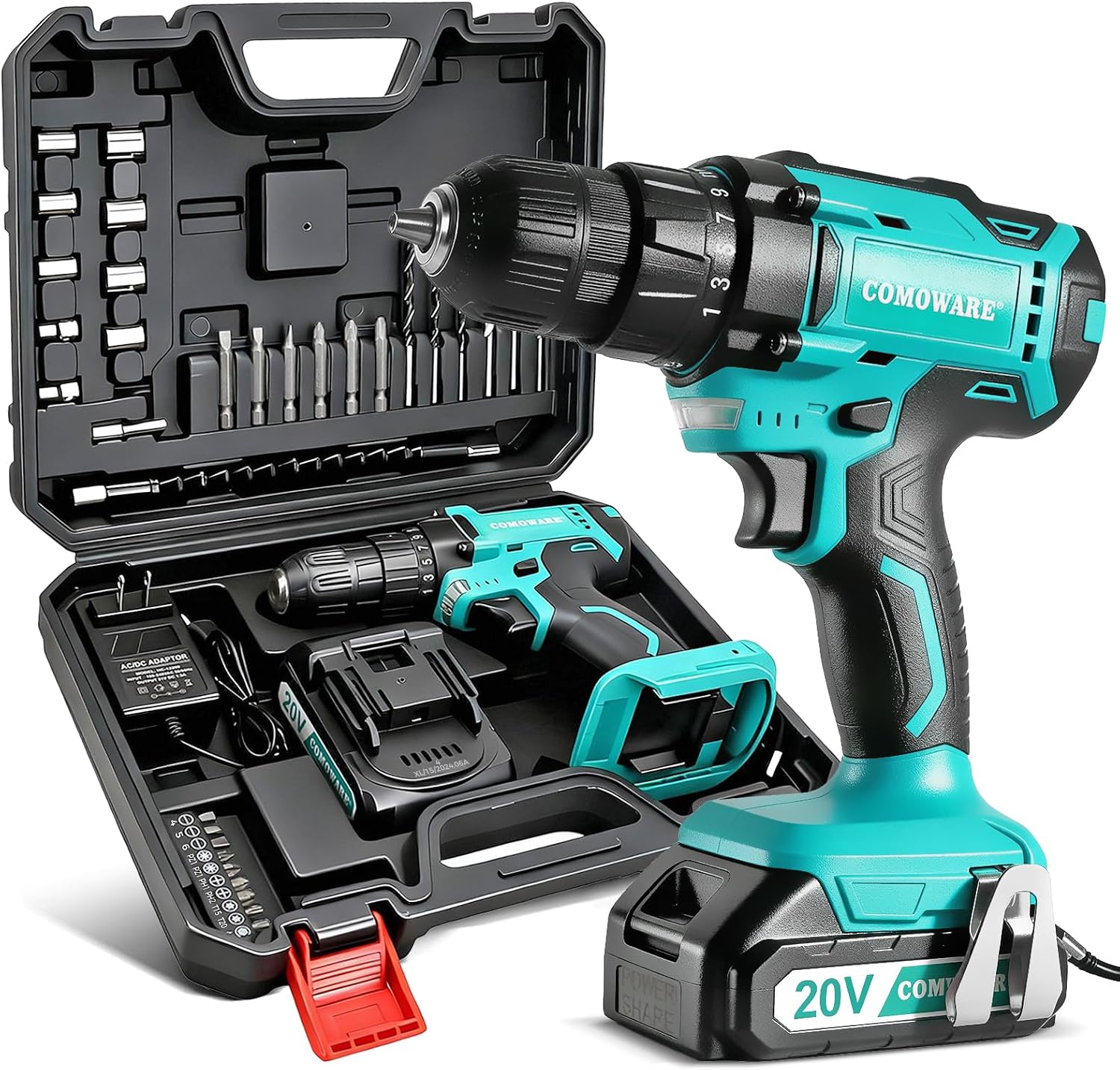

COMOWARE Cordless Drill and Bits Set (B08YJTYDD4)
At $31.99, this is a legitimate budget pick. The clutch has 16 positions, but the numbers are more like suggestions than rules. I found myself setting it by feel, turning the dial until it felt right, rather than trusting the markings. It worked fine for driving 2-inch screws into pine, and the included bit set is a nice bonus. The battery is the weak point. I got about 40 minutes of intermittent use before it died, and the charger takes over an hour to top it back up. It’s a fine starter tool for someone who needs to hang a few pictures and assemble a bookshelf, but it’s not for sustained work. If you’re the kind of person who buys a drill for one project and then leaves it in a drawer for a year, this is fine.

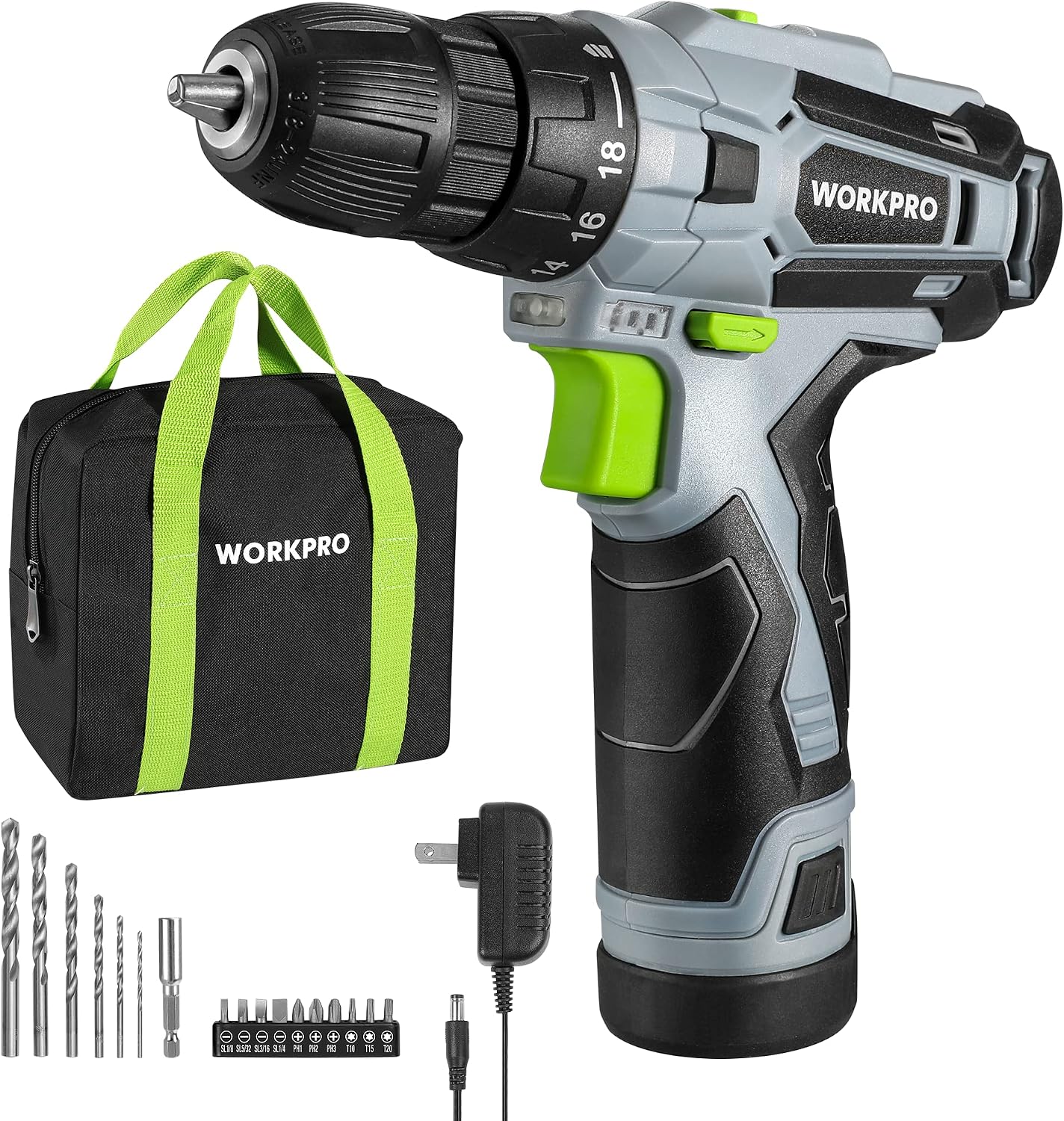

WORKPRO 12V Cordless Drill Driver Kit (B093Q12YD9)
This is the one I’d hand to my mom, who has arthritis and can’t handle most drills. At 12 volts, it’s light, maybe 2.5 pounds, and the clutch is genuinely good. I set it to 4 for cabinet screws and it clicked off cleanly every time. It’s not a powerhouse, but it’s perfect for furniture, shelves, and light repairs. The $37.98 price is fair, and the kit includes a charger and two batteries. The trade-off is power. It won’t drive a 3-inch screw into a 4x4 without stalling, and it won’t handle tap cons, but that’s not what it’s for. It’s for people who need a tool that doesn’t fight back.

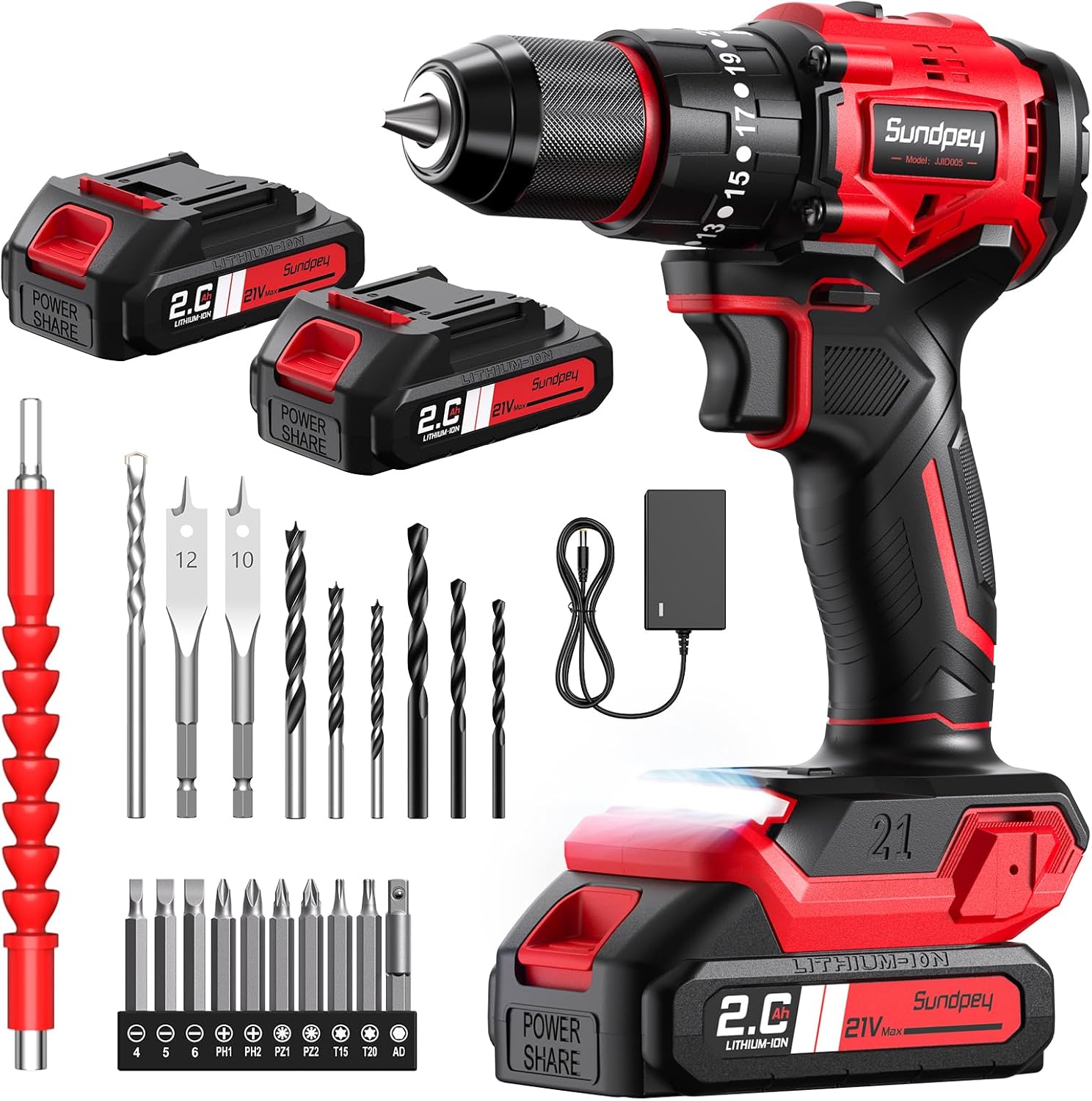

Sundpey 620 In-lbs Brushless Cordless Drill (B0GD58SCDB)
The brushless motor at this price is the story here. $35.99 for a brushless drill is unusual, and the motor does deliver more runtime than the brushed options in this field. The clutch is the problem. It’s stiff, and the numbers don’t line up with the actual torque output. I set it to 10 and it felt like 6, then set it to 15 and it felt like 20. It’s not a dealbreaker, but it means you’ll spend more time dialing it in than actually driving screws. The ergonomics are also a little odd, the handle is angled slightly differently than the others, and it took me a few days to get used to it. If you need brushless efficiency on a budget, this is it, but be ready to fight the clutch dial.

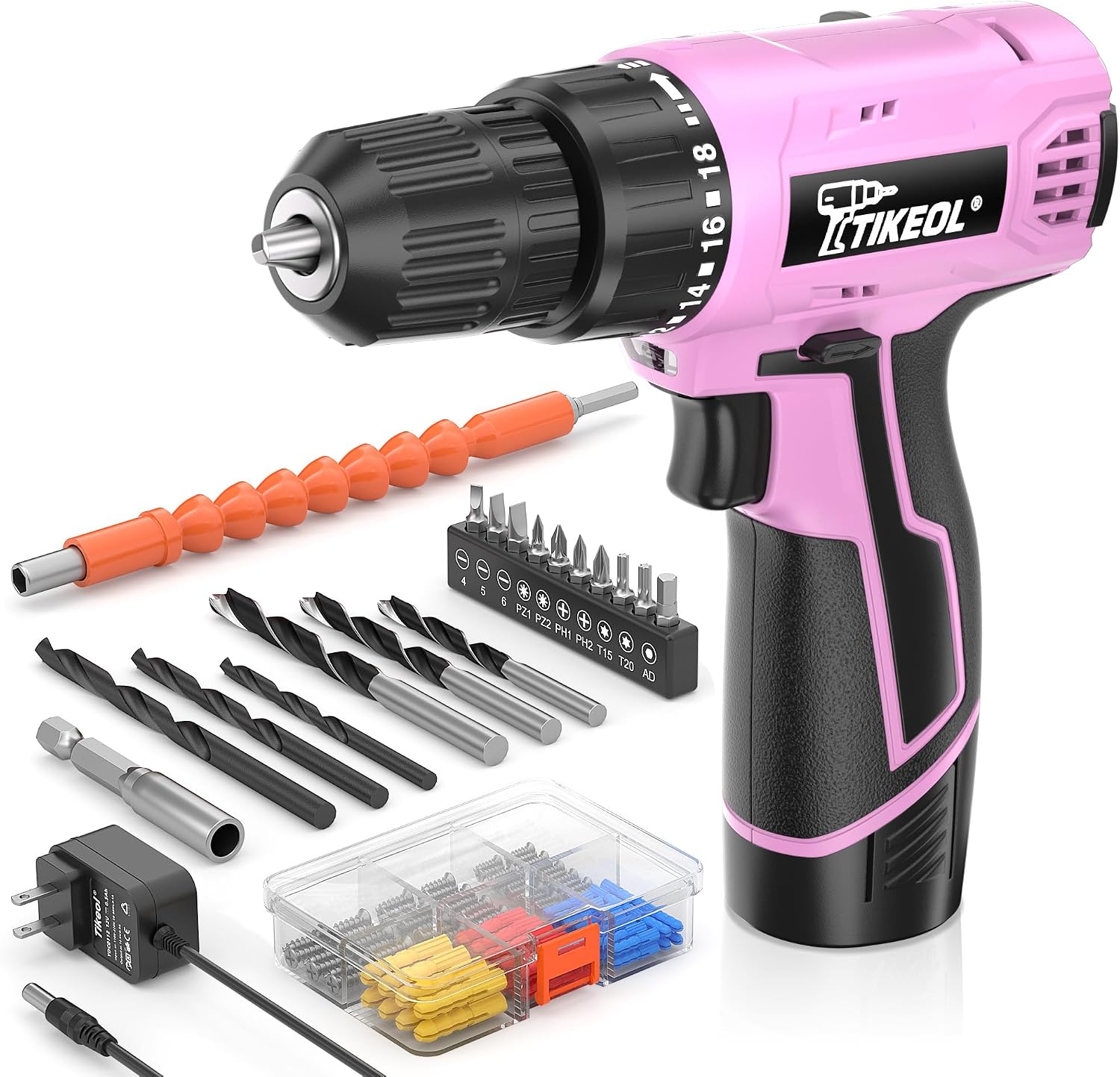

12V Cordless Drill Set with Battery and Charger (B0GGQ8VBCB)
I almost didn’t include this one. At $23.99, it’s the cheapest drill here, and it shows. The clutch is vague, the chuck slips on smaller bits, and the battery died after about 20 minutes of light use. It’s fine for a single shelf or a picture frame, but I wouldn’t trust it for anything that requires more than a dozen screws. The one thing it has going for it is the price. If you need a drill for one project and you’ll never touch it again, this will do. But if you think you’ll use a drill more than once a year, spend the extra $8 and get the AVID POWER.
Should you buy the WORX?
If you want a drill that will last you through a weekend of real work and then sit in your garage for a few years, yes. At $73.43, it’s the best value for anyone who’s going to actually use it. It’s not a pro tool, but it’s the closest thing in this field, and the clutch is the best I’ve tested under $100.
Should you buy the AVID POWER?
If you want to spend $40 and never think about your drill again, this is it. It’s the best budget option I’ve tested, and it’ll handle 80 to 90 percent of what a homeowner needs. Just don’t try to frame a house with it.
The clutch setting cheat code
Here’s the simple version. Set the clutch low for small screws, high for big ones. If the screw stops halfway in and the clutch clicks, turn it up a number. If the screw head strips, turn it down a number. Start low and work up. That’s all there is to it. You don’t need a manual, you don’t need a video, you just need to pay attention for the first ten screws and then the tool does the rest. My dad taught me that when I was a kid, and I’ve never needed a better system.
