Two different jobs get bundled into one purchase, and that is where most people lose time. A cordless drill bores the hole. A drilling guide decides whether that hole runs square to the surface or wanders off at an angle. Buy the drill, skip the guide, and you spend a season fighting dowel joints that will not line up and bits that skate across the workpiece before they bite. Get the cordless drill and drilling guide pairing right and the same ordinary bit drills like it knows what it is doing. This explainer covers four options: two cordless drills at different capability levels and two portable guides that hold a bit perpendicular.
Related: Cordless Drill Battery Platforms Explained →
Quick answer
A cordless drill and a drilling guide solve different halves of the same problem, so the useful question is not which one to buy but which pair to buy. The drill supplies rotation, torque, and the chuck that grips the bit. The guide holds that bit perpendicular to the work. Start with chuck size, because it limits everything downstream. A 3/8-inch keyless chuck accepts the shanks of most twist, brad-point, and smaller spade bits, while a 1/2-inch chuck opens the door to larger shanks. Then match the guide to the hole sizes you bore most often. The Kreg KDG-6000 carries six hardened drill guides for common pocket-hole and dowel diameters, and the Milescraft 1307 Drill Block PRO carries 25 bushings spanning 1/8 inch to 1/2 inch in 1/64 inch increments. For a first kit that includes two batteries, a charger, and 30 accessories, the DEKOPRO 20V set covers light drilling and driving. For a drill with a 1/2-inch chuck and a battery platform you can add tools to later, the CRAFTSMAN V20 kit is the more expandable starting point.
4 useful options
| Model | Best fit | What stands out |
|---|---|---|
| Power Drill Cordless: DEKOPRO 20V Electric Drills with 3/8-Inch Keyless Chuck, Variable Speed, Power Cordless Drill Set Tool with 2 Batteries, Charger&30 Accessories(Gray) | First drill, light assembly and repair work | 3/8-inch keyless chuck; variable speed; two batteries, charger, and 30 accessories included |
| CRAFTSMAN V20 Cordless Drill/Driver Kit, 1/2 inch, Battery and Charger Included (CMCD700C1) | Regular drilling and driving, room to grow | 1/2-inch chuck; battery and charger included in the kit |
| Kreg Portable Drilling Guide, 6 Hardened Drill Guides, KDG-6000 | Pocket-hole joinery and dowel work on site | Six hardened drill guides |
| Milescraft 1307 Drill Block PRO, All-Metal Handheld Drilling Guide for Straight Holes. 25 Drill Guides in One! 1/8” to 1/2” in 1/64” Increments. Dual V-Groove Design for Round Stock & Corners | Boring a wide range of diameters square | 25 guide bushings from 1/8 inch to 1/2 inch in 1/64 inch increments; all-metal body; dual V-groove for round stock and corners |

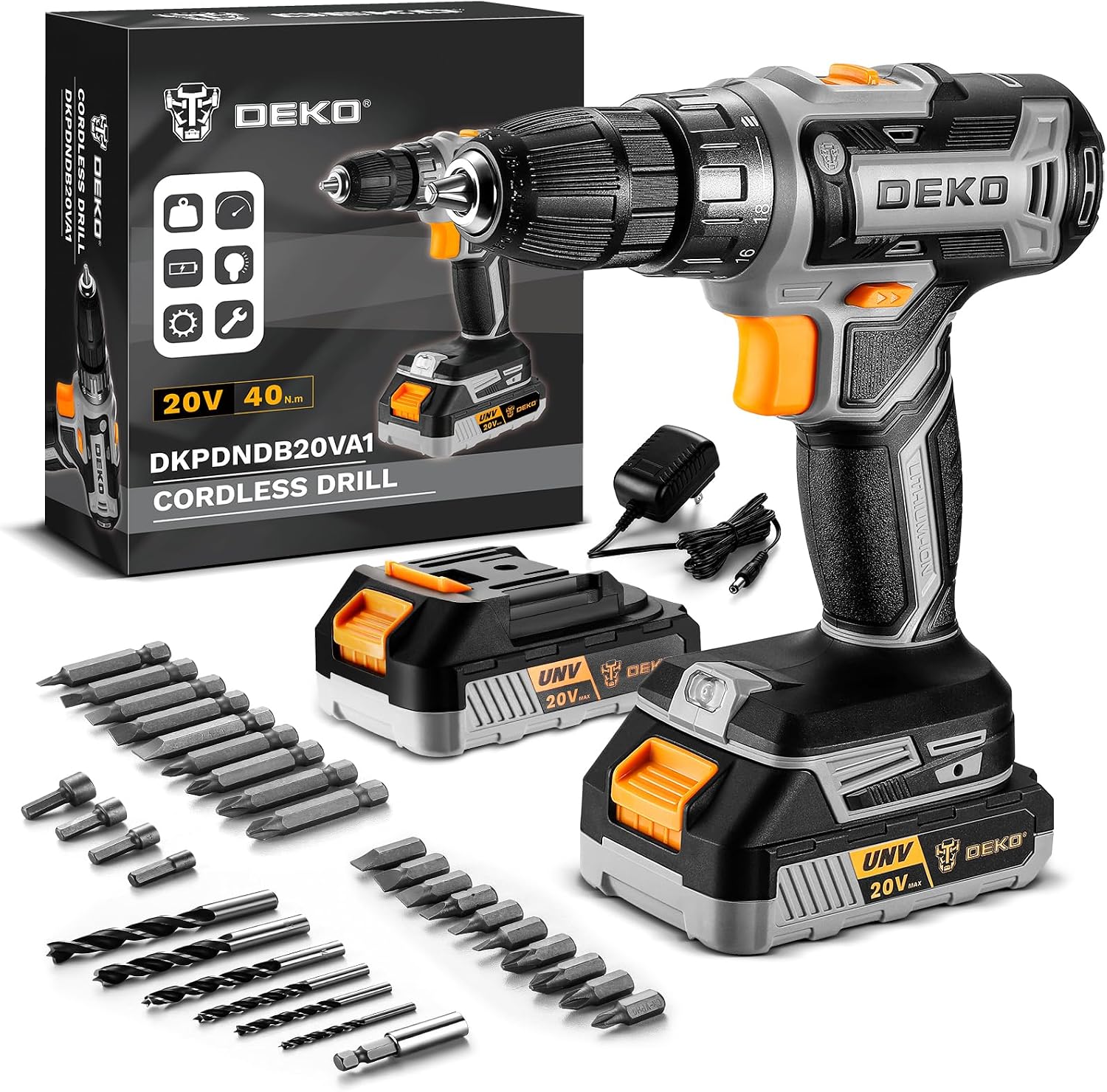

Starter cordless drill: Power Drill Cordless: DEKOPRO 20V Electric Drills with 3/8-Inch Keyless Chuck, Variable Speed, Power Cordless Drill Set Tool with 2 Batteries, Charger&30 Accessories(Gray)
This is a starter set built around getting work done now. Two batteries in the box mean one can charge while the other runs, and the accessory assortment covers driver bits and drill bits that many kits leave you to buy separately. The 3/8-inch keyless chuck is the honest limit: it fits most twist and brad-point bits, but spade bits and hole saws with 1/2-inch shanks will not go in. Variable speed matters more than raw torque here, because feathering the trigger is what keeps screw heads from stripping.
Step-up cordless drill: CRAFTSMAN V20 Cordless Drill/Driver Kit, 1/2 inch, Battery and Charger Included (CMCD700C1)
Moving to a 1/2-inch chuck changes what jobs you can take on, because it accepts the larger shanks used by bigger spade bits, hole saws, and auger bits. The V20 kit ships with its own battery and charger, so it is ready to work out of the box, and V20 is a platform rather than a single tool, which means batteries bought now can run other tools in the line later. The trade-off is weight: a 1/2-inch chuck drill is heavier than a compact 3/8-inch model, and that extra mass does not help when all you are doing is driving cabinet screws.
Compact drilling guide: Kreg Portable Drilling Guide, 6 Hardened Drill Guides, KDG-6000
Kreg built its reputation on pocket-hole joinery, and the KDG-6000 reflects that focus. Six hardened drill guides cover the diameters pocket screws and dowels use, and hardened steel is the point: a bushing that wears out of round stops making straight holes, which defeats the purpose. The portable format means you clamp the guide to the workpiece instead of carrying the work to a drill press. It fits repeat work at a handful of diameters. If you bore a dozen different sizes, six guides will not cover them.
Wide-range drilling guide: Milescraft 1307 Drill Block PRO, All-Metal Handheld Drilling Guide for Straight Holes. 25 Drill Guides in One! 1/8” to 1/2” in 1/64” Increments. Dual V-Groove Design for Round Stock & Corners
The Drill Block PRO takes the opposite approach. Instead of a few sizes it carries 25 bushings from 1/8 inch to 1/2 inch in 1/64 inch increments, so you find the guide that matches the bit in your hand rather than hunting for a bit that fits the guide. The body is all metal, and the dual V-groove design lets it sit on round stock such as dowels as well as flat stock and corners. That makes it the more versatile of the two guides for general drilling, though a block with 25 bushings is a larger thing to carry and keep track of.
Prices and availability may change. Product images, names, and retailer links must be matched by verified ASIN. Do not state a current price, rating, stock status, or measured result without current evidence.
What a drilling guide actually does
A drill bit is a long, thin, flexible cutter, and your wrist is a poor substitute for a jig. Push a bit into wood freehand and it follows the path of least resistance: it walks across a smooth surface, deflects along the grain, and exits wherever it wants on the far side. A drilling guide fixes that by giving the bit a hardened sleeve to pass through at a fixed angle. The sleeve constrains the bit right where it enters the material, which is exactly where wander starts.
Two details decide how well a guide does that job. The first is bushing hardness. Hardened steel resists wear, and a bushing that stays round keeps the bit from rattling. The second is how the guide registers against the work. A flat base suits flat stock. A V-groove lets the guide saddle round stock such as dowels, and the same groove grabs an inside corner, which is why the dual V-groove design on the Milescraft block covers more than flat boards.
Guides do not replace a drill press, and they will not straighten a bent bit. What they close is the gap between freehand drilling and machine accuracy.
Chuck size, battery platform, and the numbers that matter
Chuck size decides which bits you can use, so start there. A 3/8-inch chuck takes shanks up to 3/8 inch, which covers twist bits, brad-point bits, countersinks, and most driver bits. A 1/2-inch chuck takes the larger shanks found on bigger spade bits, hole saws, and auger bits. If you plan to bore holes larger than about an inch, the 1/2-inch chuck is the one that will not leave you stuck. Keyless chucks, found on the drills here, let you change bits without hunting for a chuck key.
Battery platform matters more than any single drill spec, because batteries are the part you keep buying. A kit with two batteries keeps you working while one charges. A kit with one battery means a pause in the middle of a job. A platform with a deep tool lineup means the batteries you own today can run a saw, a sander, or an impact driver later.
The clutch is the other control worth understanding. It is the adjustable collar that slips at a set torque so the drill stops driving before it buries a screw. Set it low, drive a test screw into scrap, and raise it a click at a time until the head seats the way you want.
- Measure the shanks of the bits you use most, then pick a chuck size that fits all of them.
- List the hole diameters your projects call for and count how many guide bushings fall inside that range.
- Decide whether you drill flat stock only or also round stock and corners, since that decides whether you need a V-groove.
- Count the batteries in the kit and confirm the platform sells other tools you might add later.
- Check that the guide registers on the material thickness you actually work with.
Getting square holes out of a cordless drill
- Let the bit cut. Feed slowly and keep the drill spinning; forcing a dull bit bends shanks and burns wood.
- Mark the hole first with an awl or center punch. A guide holds a bit straight, but it cannot stop a bit from sliding before it enters the bushing.
- Clamp the guide when the hole matters. Hand-holding works for a quick one, but clamping removes the last source of movement.
- Back the workpiece with scrap so the exit side does not tear out.
- Set the clutch on scrap before you drive, then stop fighting the tool.
Which option should you choose?
Choose the Power Drill Cordless: DEKOPRO 20V Electric Drills with 3/8-Inch Keyless Chuck, Variable Speed, Power Cordless Drill Set Tool with 2 Batteries, Charger&30 Accessories(Gray) when you want a complete first drill kit with two batteries, a charger, and accessories, and your drilling stays at 3/8 inch and under. Choose the CRAFTSMAN V20 Cordless Drill/Driver Kit, 1/2 inch, Battery and Charger Included (CMCD700C1) when you want a 1/2-inch chuck for larger bits and a battery platform you can grow into. Choose the Kreg Portable Drilling Guide, 6 Hardened Drill Guides, KDG-6000 when your work centers on pocket-hole joinery and standard dowel diameters and you want a compact guide with hardened bushings. Choose the Milescraft 1307 Drill Block PRO, All-Metal Handheld Drilling Guide for Straight Holes. 25 Drill Guides in One! 1/8” to 1/2” in 1/64” Increments. Dual V-Groove Design for Round Stock & Corners when you bore a wide spread of diameters, or when round stock and corners are part of the job.
One caveat on evidence: the specifications above come from the manufacturer listings for each product. How a guide's bushings hold up after hundreds of holes, and how a battery holds charge after several seasons, are things only long-term use reveals. Treat the feature lists as a starting point and your own work as the test.
The bottom line
A cordless drill and drilling guide are a pair, not a choice between two purchases. The drill determines what bits you can turn and which battery platform you are committing to; the guide determines whether the holes come out square. Match the chuck to your bits, match the guide bushings to your hole sizes, and pick the kit whose battery count and platform fit the way you work. The DEKOPRO set covers the light end with two batteries and accessories in the box. The CRAFTSMAN V20 kit moves you to a 1/2-inch chuck and a platform with room to grow. On the guide side, the Kreg KDG-6000 handles pocket-hole and dowel diameters, and the Milescraft Drill Block PRO covers the widest range of sizes plus round stock and corners.
